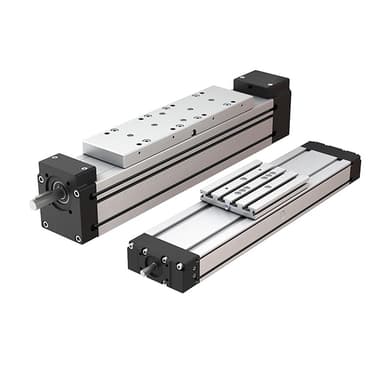

CTV-90 Ball Screw Linear Unit

CTV-90 compact precision ball screw actuator with two parallel integrated zero-backlash rail guides. ISO 7 tolerance ball screw (Ø16×5 or Ø16×10 mm lead), hard anodized Al 6063 body, one-step machined surfaces. Up to 18,800 N axial load and ±0.01 mm repeatability over 1,325 mm stroke. 4-sided installation. Optional IP65 sealing available.

CTV-110 Ball Screw Linear Unit

Medium-frame CTV-110 with 30,680 N max axial force and ±0.005 mm repeatability. ISO 7 precision ball screw (Ø20×5, ×10, or ×20 mm lead) in hard anodized 110 mm aluminum profile. Up to 1,690 mm stroke. Dual zero-backlash rail guides for maximum rigidity in heavy-load and long-stroke tasks.

CTV-145 Heavy Duty Linear Unit

Large-frame CTV-145 for demanding heavy-duty precision positioning. 145 mm profile with up to 29,600 N axial load over 1,690 mm stroke. Dual zero-backlash rail guides, Ø25 mm ISO 7 ball screw. Highest rigidity and load capacity in the CTV family. Industry-standard 4-sided mounting.

CTV-200 Extra-Large Ball Screw Unit

CTV-200 extra-large ball screw actuator — 200 mm profile with the widest carriage in the CTV family. 29,600 N axial load, Ø32 mm ISO 7 ball screw (5/10/20 mm lead), up to 2,000 mm stroke at ±0.01 mm repeatability. Dual zero-backlash rail guides. For very large tooling plates and heavy precision gantry applications.

MTV-40 Miniature Ball Screw Unit

MTV-40 — smallest MTV profile at 40 mm. Single zero-clearance guide rail, 5,800 N axial force, 1.5 m/s, 1,456 mm stroke. Ø10 mm precision ball screw. Plug & Drive stepper compatible. Ideal compact Z or Y axis in 3-axis gantry systems.

MTV-65 Compact Ball Screw Unit

MTV-65 ultra-compact ball screw actuator. 65 mm profile with up to 2,690 mm stroke and 10,190 N force at 1.5 m/s. Precision Ø12 mm ball screw, integrated zero-clearance guide rail. Best price/performance in the Unimotion range. Plug & Drive stepper compatible for instant commissioning.

MTV-80 Standard Ball Screw Unit

MTV-80 is the widest-performance-envelope compact actuator — 34,200 N force, 2.5 m/s speed, 5,224 mm stroke in an 80 mm profile. Precision Ø16 mm ball screw with three lead options (5/10/16 mm). The industry workhorse for general automation with optimal cost/performance.

MTV-110 Heavy Ball Screw Unit

MTV-110 — largest and most powerful MTV at 110 mm profile. 29,600 N force, 2.5 m/s, 5,456 mm maximum stroke — the longest available in the ball screw range. Ø25 mm precision ball screw (5/10/25 mm lead), 52.3 Nm max torque. Single zero-clearance guide rail for compact cross-section.

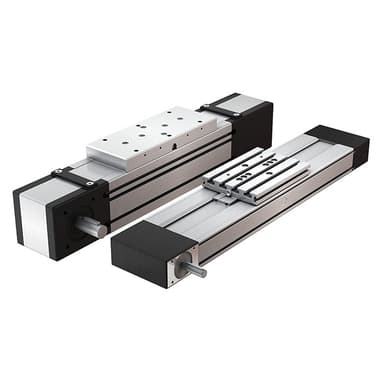

CTJ-90 Dual-Rail Belt Unit

CTJ-90 dual-rail belt unit — 90 mm profile with two parallel zero-backlash rail guides for maximum moment rigidity. 6 m/s, 2,850 N force over 2,873 mm. Steel-reinforced PU belt, one-step machined internals. The compact dual-rail belt solution for applications with significant moment loads.

CTJ-110 Dual-Rail Belt Unit

CTJ-110 medium dual-rail belt unit — 110 mm profile, 2,850 N, 6 m/s, 3,873 mm stroke. Dual zero-backlash rail guides handle high moment loads from wide tooling. Heavy-duty timing belt, large carriage plate, double carriage option.

CTJ-145 Dual-Rail Belt Unit

CTJ-145 large dual-rail belt unit — 145 mm profile with maximum CTJ carriage area. 6 m/s, 2,850 N, 5,873 mm stroke. Dual zero-backlash guides for high rigidity under moment loads. Wide/extended carriage options, optional IP65.

CTJ-200 XL Dual-Rail Belt Unit

CTJ-200 — the widest Unimotion belt unit at 200 mm dual-rail profile. Maximum moment capacity in the CTJ family. 6 m/s, 2,850 N, up to 5,873 mm stroke. Dual zero-backlash guides, widest carriage plate, multi-carriage capable. For portal machines and wide-beam automation.

MTJ-40 Compact Belt Unit

MTJ-40 — the smallest, fastest Unimotion belt actuator. 40 mm profile, 6 m/s, 3,850 N over 2,876 mm stroke. Steel-reinforced polyurethane belt with zero-clearance integrated guide rail. Low moving mass for maximum cycle rates. Motor mount left/right, adjustable belt tension.

MTJ-65 Medium Belt Unit

MTJ-65 medium belt actuator — 65 mm profile, 6 m/s, 3,270 N standard force over 5,820 mm stroke. Large carriage area with double carriage option for wide tooling plates. Steel-reinforced PU belt, zero-clearance guides, IP65 available. Optimal balance of speed, load, and stroke.

MTJ-65 High-Force Belt Unit

MTJ-65 high-force variant — 10,190 N force capability at 4 m/s over 5,820 mm stroke. Heavy-duty belt configuration with extended carriage options. Ideal as Y-axis in gantry systems or for transporting heavier assembly tools.

MTJ-80 Medium Belt Unit

MTJ-80 mid-size single-rail belt unit — 80 mm profile, 4,200 N, 6 m/s, 5,770 mm stroke. The mid-range workhorse bridging compact MTJ-65 and large MTJ-110. Single zero-clearance guide, steel-reinforced PU belt, IP65 option.

MTJ-110 Large Belt Unit

MTJ-110 large-frame belt unit — 110 mm profile with 5,000 N force at 6 m/s over 5,748 mm. Wide carriage plate with double-carriage option for large tooling. High-rigidity rail system, heavy-duty timing belt. The XL belt actuator for demanding gantry and transport applications.

MTJ-110 Heavy Duty Belt Unit

MTJ-110 heavy-duty — 20,260 N force in the 110 mm profile at 4 m/s over 5,748 mm. Steel-reinforced belt, dual guide rail, reinforced carriage. For the heaviest belt-driven loads in gantry and transport applications.
